We are proud to announce our participation in Drink Japan 2025, the premier beverage industry exhibition to be held in Tokyo, Japan.As one of Asia’s leading trade shows for the beverage, brewing, and distillation industries, Drink Japan brings together manufacturers, distributors, and professionals from around the world.At the exhibition, we will showcase our latest brewing and distillation equipment, offering smarter and more efficient solutions for the modern beverage production industry.
Exhibition Information
Exhibition Name: Drink Japan 2025
Booth No.: 2-15
Date: December 3–5, 2025
Location: Tokyo, Japan (Tokyo Big Sight)
Drink Japan is one of Asia’s most influential exhibitions for beverage manufacturing and packaging technology.It focuses on showcasing innovative solutions across the entire industry chain, including brewing, distillation, filling, ingredients, and quality inspection.
This exhibition offers a valuable opportunity to experience equipment firsthand, meet potential partners, and expand your business in the global beverage market.
Featured Equipment Highlights

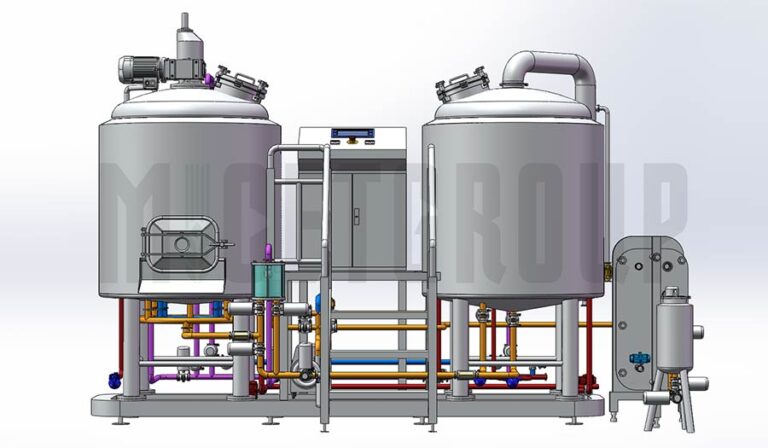

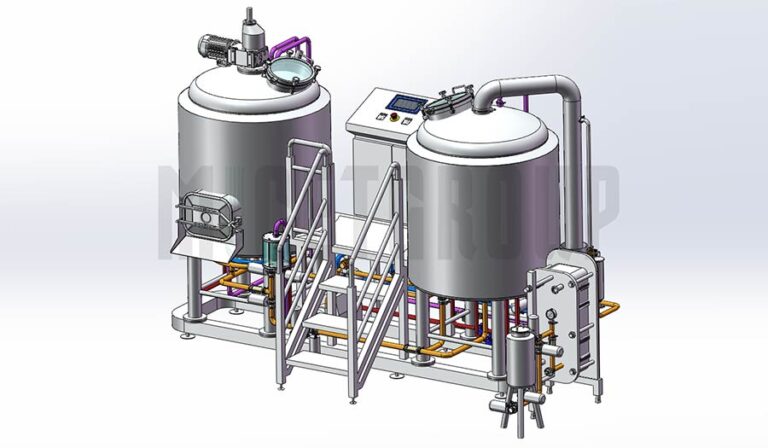

500L Fully-Automatic 2-Vessel Brewhouse System
Artikel | Specification & Description |
System Capacity | 500 L per batch (customizable capacities available) |
Tank Configuration | Mash/Lauter Tun + Kettle |
Material | High-quality stainless steel 304/316, compliant with food-grade standards |
Tank Thickness | 3–5 mm, optional insulated jacket design |
Heizmethode | Steam or electric heating |
Heat Exchange System | High-efficiency plate heat exchanger for rapid wort cooling |
Heat Recovery | Built-in energy-saving heat recovery system |
Automation Control | PLC intelligent control with precise temperature, timing, and pump flow management |
Recipe Management | Multi-recipe storage, touch-screen operation, supports remote monitoring and data logging |
Agitation System | Built-in mechanical agitator ensures uniform mashing |
Filtersystem | Automatic spent-grain discharge, removable filter plates for easy cleaning |
Cooling Integration | Plate heat exchanger for rapid cooling, compatible with fermenters and distillation units |
Safety Protection | Automatic temperature control, dry-burn protection, safety valve, and temperature sensors |
Operation & Maintenance | One-touch start and automatic operation; detachable piping for easy cleaning; compliant with GMP and food hygiene standards |
Application Scope | Craft breweries, small-scale breweries, and R&D laboratories |
Core Components
- Mash & Lauter Tun: Equipped with a 3 t/h VFD wort pump, 1.1 kW VFD agitator motor, rake lifting motor, and 360° rotary CIP spray ball. Allows stepless adjustment of pump speed and agitator speed, achieving a perfect balance between gentle filtration and efficient stirring, greatly enhancing extract yield and wort clarity.
- Valves & Instruments: Fully automatic pneumatic valve set, flow meter, and a complete suite of intelligent sensors. Provides a reliable hardware foundation for fully automated and precise control, ensuring stable and repeatable results for every batch.
- Automation & Control: Fully automatic PLC control cabinet + touch-screen HMI (Human-Machine Interface).
- Control Modes: Unit manual, segmented automatic, one-touch fully automatic.
Key Advantages
- Precise Control & Quality Stability: Multi-variable online monitoring and closed-loop control ensure consistent extract yield and wort quality for every batch.
- Extremely Efficient & Labor-Saving: Fully automatic operation and multi-batch parallel processing reduce labor requirements to a minimum while significantly improving equipment utilization.
- Flexible Operation & Easy to Use: Multi-level operation modes, from simple one-touch production to deep customization, reducing the reliance on skilled operators.
300L Multi-Functional Distillation Equipment
Kategorie | Detailed Specifications & Description |
System Capacity | 500 L per batch |
System Composition | 500 L Mash & Lauter Tun + 500 L Kettle & Whirlpool Tank |
Main Material | High-quality stainless steel (304 or 316), double-layer jacket with rock wool insulation |
Heizmethode | Steam heating (via jacket) |
Heat Exchange System | 6 m² six-pass plate heat exchanger |
Core Components
- Mash & Lauter Tun: 3 t/h VFD wort pump, 1.1 kW VFD agitator motor, rake lifting motor, and 360° rotary CIP spray ball.
- Valves & Instruments: Pneumatic butterfly/ball valves, stop valves, steam traps, flow meter, and intelligent sensors for temperature, radar, level, pressure, displacement, turbidity, and foam detection.
Automation & Control：Fully automatic PLC control cabinet with touch-screen HMI.
- Control Mode：One-touch fully automatic operation.
- Core Functions：Recipe management, multi-batch parallel operation, remote monitoring via mobile or computer, and real-time data display and recording.
- Mashing Process：Automatic mixing of grist and water, precise temperature control, and automatic mash transfer, sparging, and spent-grain discharge.
- Filtration Process：Automatic control based on pressure, displacement, and turbidity; automatic recirculation, filtration, and sparging; automatic adjustment of rake position and speed.
- Boiling & Cooling：Foam overflow prevention, segmented boiling alarms, automatic whirlpooling, and automatic ice-water temperature control.
Cleaning & Maintenance：Automatic pipeline sterilization and CIP (Clean-in-Place) system.
- Precise Control: Real-time monitoring of temperature, liquid level, and turbidity ensures stable extract yield and wort quality.
- High Efficiency: High equipment utilization, supports multi-batch parallel production, greatly reducing labor requirements.
- Flexible Operation: Supports multiple operation modes from manual to fully automatic, adaptable to different production needs.
Exclusive Exhibition Offers
To express our gratitude for the continued support of our new and existing customers, we are launching a special exhibition campaign during Drink Japan 2025:
Present this invitation at our Booth No. 2-15 to receive an exclusive gift!
In addition, visitors can enjoy the following benefits:
- Live equipment demonstrations and on-site professional consultation
- Free brewing and distillation process optimization advice
- Limited-time discounts for on-site orders
Quantities are limited and gifts are available on a first-come, first-served basis.
We warmly welcome you to schedule your visit in advance and meet our team in Tokyo!
Why Visit Our Booth?
✅ Experience live equipment operation and demonstrations
✅ Speak directly with our engineers for in-depth technical discussions
✅ Receive personalized and customized equipment solutions
✅ Explore dealership and international business partnership opportunities
Whether you are planning a new project, expanding your production capacity, or seeking a reliable equipment supplier, we are ready to provide you with professional, cost-effective, and efficient solutions tailored to your needs.
Visit Us
We warmly invite brewers, distillers, distributors, and beverage manufacturers from around the world to visit us at Drink Japan 2025 – Booth No. 2-15,
and explore the latest trends and technological innovations in beverage production together!
📅 Date: December 3–5, 2025
📍 Location: Tokyo, Japan (Tokyo Big Sight)
🎟️ Present this invitation at our booth to receive an exclusive gift!
📧 Kontakt in advance to schedule a meeting or request more product information.
